Specifications
|

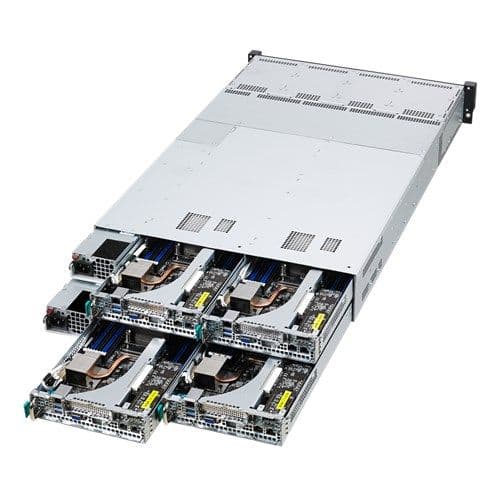

ASUS RS720Q-E8-RS12 2U 4x Node Rack Server 4 x ASUS Server Nodes |
|
Specifications: |
|
| Model | ASUS RS720Q-E8-RS12 |
| Server Nodes | 4x ASUS V3/ V4 Nodes installed |
| Admin Console | On-Board ASMB8-iKVM for KVM-over-IP |
| Networking |
Quad 1GbE NICs (EACH NODE) (Optional 10GbE SFP+ + 40Gb QSFP+ upgrade)*** |
| PowerSupply | 2 x High Performance Redundant Power Supplies |
| Rack rails | Not included** |
| Graphic | Standard VGA Port-KVM |
| I/O slots | 8 flexible PCIe slots |
| Storage |
Takes up to 12 x 3.5" LFF SAS/SATA/ SSDs ** (x3 for each Node) |
| Condition | Refurbished |
| Warranty | 1 Year (AnyParts) RTB Warranty |
Technical Specs |
4x ASUS Compute Node |
|
Specifications: (Each Server Node) |
|
| Compute | 2 x 10-Core Intel Xeon E5-2687W V3 Processor (25M Cache, 3.1GHz, Max Turbo 3.5GHz) Hyper-Threading, Dual Sockets, Both CPU installed (20Cores / Logical Procs / 40 Cores/ Threads) |
| Memory | 64gb (8 X 8gb DDR4) Memory (Optional 128gb/256GB512GB/ 768GB memory upgrades** |
| Storage | 1x 80GB M.2 2242 MGFF SSDs ( Optional 60/ 200/400/800GB 1.8" M.2 SSD upgrades)*** |
| Backplane | 1x 3 Bay 3.5" LFF SAS /SATA /SSD |
| RAID | Integrated SATA RIAD Controller (Optional SAS HBA /RAID Controller*** |
| Networking | 4 -Port 1Gbs NICs (Optional 10GbE SFP+ , 40GbE QSFP + NICs)*** |
| Management | iIPMI |
| Condition | Refurbished |
| Warranty | 1 Year RTB Warranty |
| OS (Evaluation ver) | Tested with Windows Server 2019 / VMWARE ESXI 7 / Proxmox VE |
|
|
