Specifications
NVIDIA virtual GPU (vGPU) is the industry's most advanced technology for sharing the power of NVIDIA GPUs across virtual machines (VMs) and virtual applications. Amp up the power of your VDI environment and deliver a superior experience to every remote user, for every application and on any device.
In a VDI environment powered by NVIDIA virtual GPU, the NVIDIA virtual GPU software is installed at the virtualisation layer along with the hypervisor. The NVIDIA virtual GPU software creates virtual GPUs enabling every virtual machine (VM) to share the physical GPU installed on the server. The NVIDIA virtualisation software includes a graphics driver for every VM. Quadro vDWS includes for example, the powerful Quadro driver. Because work that was typically done by the CPU is offloaded to the GPU, the user has a much better experience, and demanding engineering and creative applications can now be supported in a virtualised and cloud environment.
https://www.nvidia.com/content/dam/en-zz/Solutions/design-visualization/solutions/resources/documents1/nvidia-m60-datasheet.pdf
HPC Server Solution for 64 simultaneous users. Virtual worksations for performance demanding media applications. |
|
Specifications: |
|
| Compute | 2 x Intel Xeon E5-2690 v2 3ghz 10-core CPU Processor Dual CPU Sockets , 2 x Processors installed Total 20 cores / 4o threads |
| Memory | Memory :256GB (8 x 32GB) of PC3 Memory |
| Storage | 2 x 1TB Enterprise SSD ( 10TB RAW Storage ) |
| Backplane | 1x 10 Bay 2.5” SFF ( 16 x SAS / SDD Drive option available)** |
| RAID | Intergrated SATA |
| FANs | 5x 8cm heavy duty fans with optimal fan speed control |
| Power Supply | 2 x Redundant Power Supplies ( Platinum 80+ ) |
| Networking | Intel® i350 Dual-Port GbE Controller + 10GB SFP + |
| GPU | 2 x Nvidia Tesla M60 virtual workstation GPU ( 4096 NVIDIA CUDA® cores , 16 GB of GDDR5 memory , Up to 32 users per board ) |
| Management | Integrated IPMI 2.0 with KVM and Dedicated LAN |
| Front Bezel | 4x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards, opt.), 1x PCI-E 3.0 x8 (in x16) slot, 1x PCI-E 2.0 x4 (in x16) slot |
| Condition | Refurbished |
| Warranty | 12 Months RTB Warranty |
| OS (Evaluation ver) |

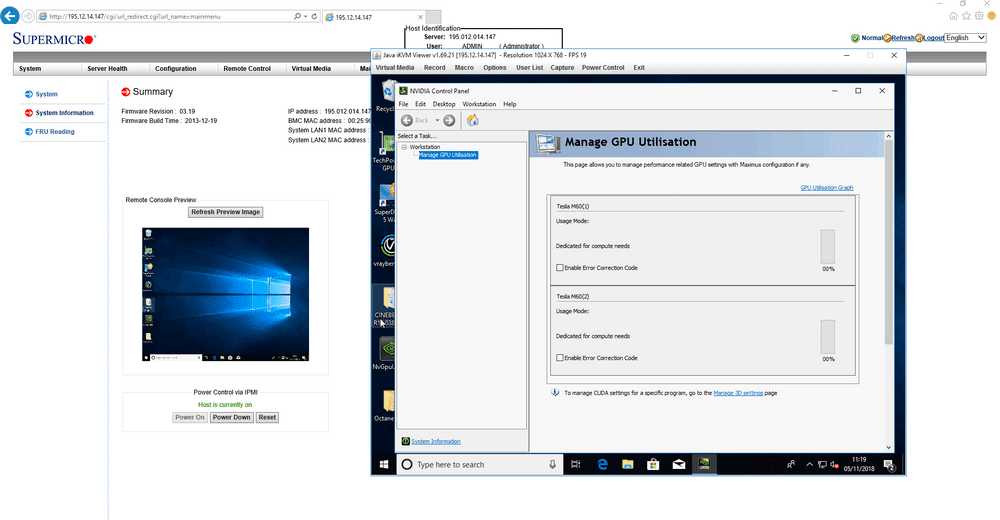

Tested with Windows 10 Pro + Nvidia M60 Drivers
VMWARE / Nvidia GRID License not included.
|
NVIDIA virtual GPU (vGPU) is the industry's most advanced technology for sharing the power of NVIDIA GPUs across virtual machines (VMs) and virtual applications. Amp up the power of your VDI environment and deliver a superior experience to every remote user, for every application and on any device.
In a VDI environment powered by NVIDIA virtual GPU, the NVIDIA virtual GPU software is installed at the virtualisation layer along with the hypervisor. The NVIDIA virtual GPU software creates virtual GPUs enabling every virtual machine (VM) to share the physical GPU installed on the server. The NVIDIA virtualisation software includes a graphics driver for every VM. Quadro vDWS includes for example, the powerful Quadro driver. Because work that was typically done by the CPU is offloaded to the GPU, the user has a much better experience, and demanding engineering and creative applications can now be supported in a virtualised and cloud environment.
https://www.nvidia.com/content/dam/en-zz/Solutions/design-visualization/solutions/resources/documents1/nvidia-m60-datasheet.pdf
