Specifications
|
HPE Synergy intelligent infrastructure |
|
| PID: SY12K-477 | |
Specifications: |
|

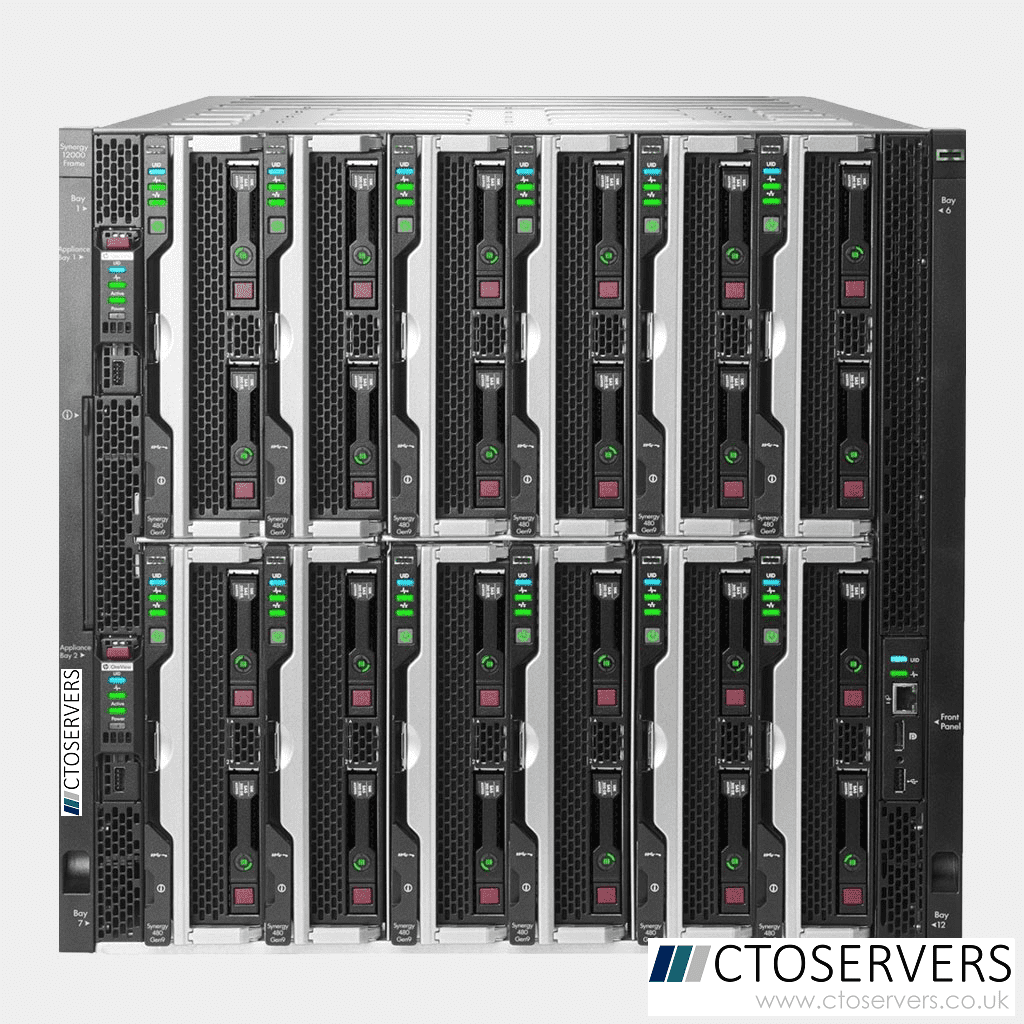

| Model | HPE Synergy 12000 Frame |
| I/O Modules | 2 x HPE Virtual Connect SE 100GB F32 Module (QSFP 28/ QSFP+/SFP+ Uplink port connectors |
| Admin Console | 2 x Frame Link Module +1 X Composer 2 Module |
| Fans | All 10 x Fans |
| PowerSupply | All 6 x Redundant 2650W Power Supplies included |
| Rack rails | 6u Sliding Rack Rails Included |
| Condition | Refurbished |
| Warranty | 2 Year RTB (any parts) Warranty |

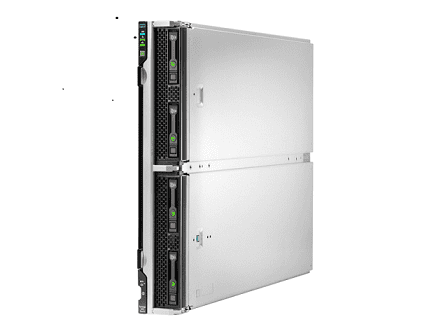

| HPE Synergy 660 Gen10 Compute Nodes (x 6) | |
| PID: SY660-641 | |
Specifications: (Each Node) |
|
| Compute: | Dual 18-Core 2nd Gen Intel Xeon 6254 Gold Processor 2.10GHz Max Turbo 4.0Ghz) Hyper-Threading, VT, QUAD Socket- 4x CPU Installed , 72Cores / 144 Threads) |
| Memory | 3072GB (3.0 TB , 24x128GB) Intel DC PMem 2133-DDR RAM (memory / app direct mode option)** |
| Storage | 2 x 120GB M.2 - RAID-1 for OS + 4x 3.84TB 2.5" SFF SSD- Major brand (15.36 RAW SSD Storage) |
| Backplane | Four (4) small form factor (SFF) SAS or SATA hot plug hard disk drives or SATA /SAS SSD |
| RAID | HP Smart Array S100i SR Gen10 + P208i RAID Controller |
| Networking | HPE Synergy 4820C 10/20Gb CNA - Converged Network Adapter |

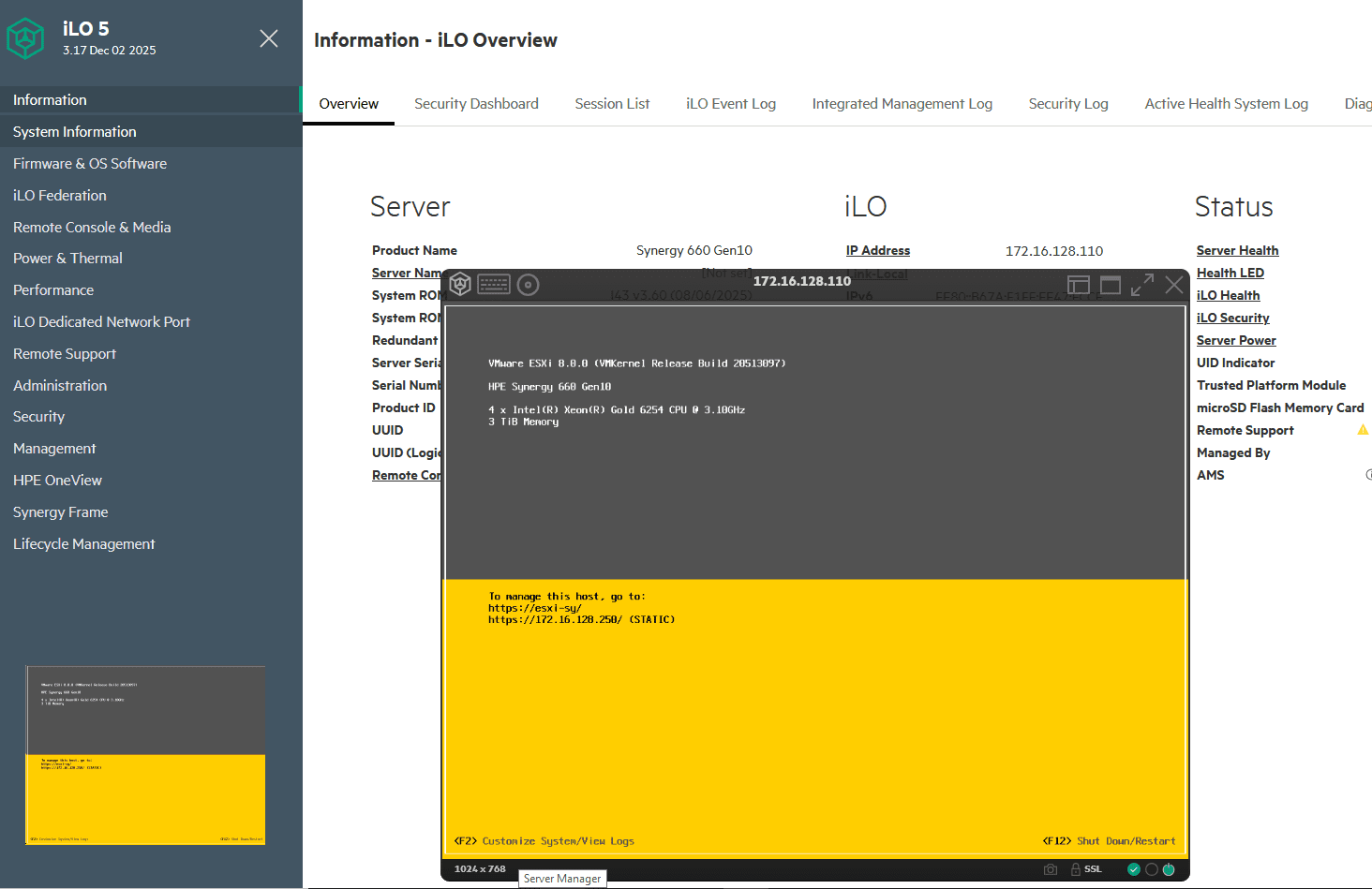

| Management | HP Integrated Lights-Out Standard |
| Condition | Refurbished |
| Warranty | 2 Year (anyparts) RTB Warranty |
| OS (Evaluation ver) | Tested with Proxmox / VMWARE ESXI 8.0/ Windows 2019 / 2022 / windows 2016 HPC / Centos /Ubuntu / Red hat Linux |
| Custom configurations are available on all our systems If you have any special requirements, comments or questions, feel free to email us sales@ctoservers.co.k |
